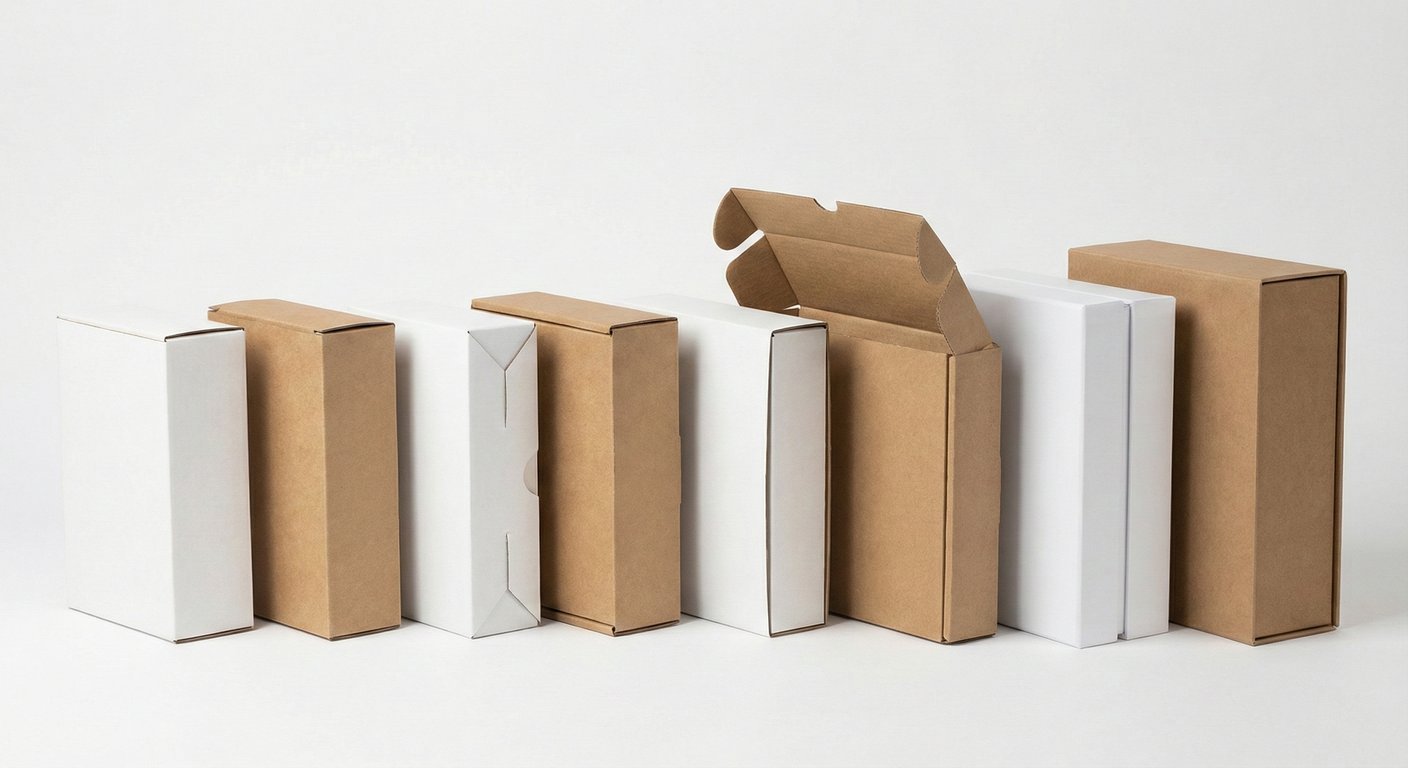

8 Common Types of Packaging Boxes: A Complete Structural Guide

The Straight Tuck End is one of the cleanest and most visually appealing structures. In this design, the top and bottom closure flaps tuck into the box from the same side (usually the back).

• Pros: It provides a seamless front panel with no raw paper edges visible, making it ideal for high-end cosmetics and retail products.
• Dieline Feature: Both tuck flaps are aligned on the same panel in the flat layout.

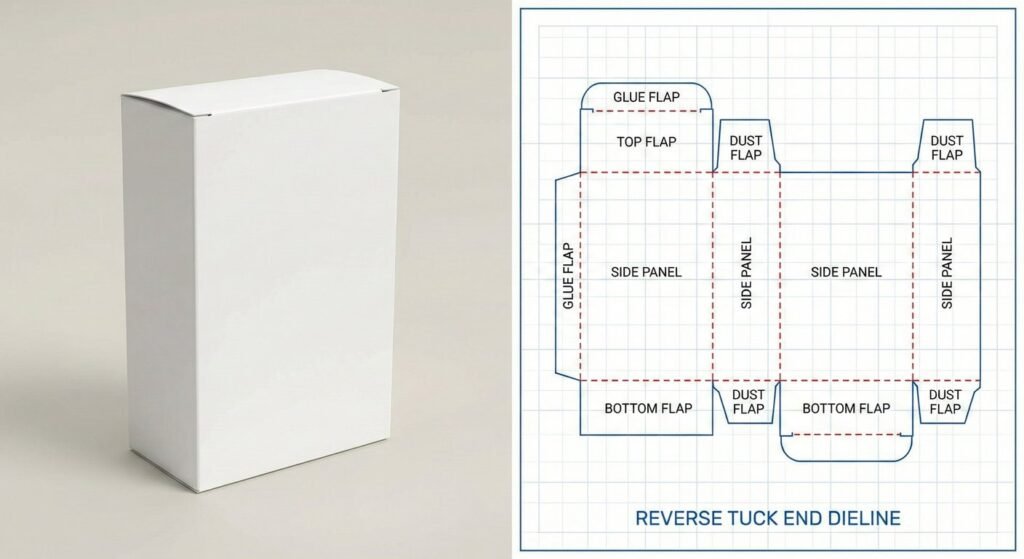

As the most cost-effective option among folding cartons, the Reverse Tuck End features top and bottom closure flaps that tuck in from opposite sides.

• Pros: This design allows for tighter nesting during printing and die-cutting, which reduces paper waste and lowers unit costs.
• Best For: Pharmaceuticals, light retail items, and budget-conscious projects.

When products are heavier, a simple tuck bottom isn’t enough. The Snap-Lock bottom, often called the “1-2-3 Bottom,” involves three steps to interlock the bottom flaps manually.

• Structure: It combines structural integrity with cost efficiency since it usually does not require bottom gluing at the factory.
• Best For: Candles, jars, and medium-weight electronics.

Among the various types of packaging boxes, the Auto-Lock bottom is the king of efficiency. The bottom is pre-glued by the manufacturer. When the box is popped open, the bottom automatically locks into place instantly.

• Pros: Drastically reduces fulfillment time for your packing team.
• Cons: Higher manufacturing cost due to the gluing process.

This hybrid structure combines the speed of the Auto-Lock bottom with a standard tuck top. It is a workhorse structure for retail environments where shelf-stacking speed is essential.

• Usage: Frequently used for food products, cereals, and heavier retail goods that require a flat, secure base.

The Mailer Box is the definitive structure for e-commerce. It is self-locking and requires no tape to assemble (though tape is used for shipping security). The double-walled sides provide excellent crush resistance.

• Dieline Feature: Features “cherry locks” that secure the lid into the front panel.
• Best For: Subscription boxes, clothing, and direct-to-consumer shipping.

This structure consists of a separate lid and base (tray). It is synonymous with luxury and rigidity.

• Structure: Often made with rigid chipboard wrapped in premium paper, but can also be made as a folding carton.
• Best For: iPhones, jewelry, and high-end apparel.

This slide-to-open experience mimics a drawer. It consists of an outer sleeve (belt) and an inner tray.

• Pros: Creates a unique “reveal” unboxing experience that customers love.
• Application: Confectionery, small electronics, and luxury gifts.

Once you have selected from these structures, the next step is prototyping. We specialize in customizing Gangda’s Custom Boxes to fit your product’s exact dimensions, ensuring that the internal void space is minimized to save on shipping costs.

💡 Gangda Insider Tip:

If you are debating between a Snap-Lock (1-2-3) and an Auto-Lock bottom, calculate your labor costs. If you are packing 10,000 units, the Auto-Lock is one of the types of packaging boxes that pays for itself by saving hundreds of hours in manual assembly time, despite the slightly higher unit price.

Understanding these 8 common types of packaging boxes allows you to make informed decisions that balance protection, aesthetics, and budget. Whether you need the economy of a Reverse Tuck End or the premium feel of a Two-Piece box, the structure sets the stage for your brand.

Are you ready to finalize your box structure and see a custom dieline? Contact our structural engineering team today to get started.
